Kinco GT100E 10" IoT Series Widescreen HMI Touch Panel with Ethernet

Quantity	Unit price
To 3	€334.45*
To 19	€317.73*
To 39	€301.01*
From 40	€284.29*

Prices excl. VAT plus shipping costs

Available, delivery time: 10-15 Tage

USB-Speicher ?

Transcend JetFlash 740K Rugged 8 GB USB flash drive for industrial environments

€26.00*

Product number:

KIH.GT100E

Manufacturer no.:

GT100E

Create PDF quotation

Create PDF quotation for this product Hint: You can add multiple products to the cart and create a quotation in the cart. For logged in users the link will generate a quotation with their address.

Product information "Kinco GT100E 10" IoT Series Widescreen HMI Touch Panel with Ethernet"

The GT100E is the IoT variant of the GL100E and a modern, versatile and very cost-effective HMI touch panel with 7'' screen diagonal and a resolution of 1,024 * 600 pixels from Kinco with Ethernet interface. It has an integrated VPN remote maintenance and remote download function and automatically connects to a remote maintenance server in Frankfurt, e.g. via a router, if an Internet connection is available.

The HMI is programmed via the free Kinco DTools software. You can find this further down on this page as a download. The software is available in German language.

You can connect PLCs, frequency converters and other devices that you want to visualize or control via Ethernet and serial interface. The touch panel offers you a versatile range of functions and simple graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.

The device supports communication with over 60 different PLC models, including Siemens S7-200, S7-1200/1500, S7-300/400, LOGO!, Modbus RTU/TCP (Master and Slave), Allen Bradley, Thinget, Mitsubishi FX, Beckhoff ADS, BACnet and many others.

Features (excerpt):

Various graphical elements for display and operation
Animations
Individual graphic elements and images possible
Extensive data logging
Recipe management
VNC server and client for remote control (e.g. from smartphone or browser)
PDF display on the HMI (new)
User management and security
Alarms and Events
Individual language switching for users programmable via text tables
C macros for complex calculations
Program and recipe download via USB, USB stick, or Ethernet
FTP server to retrieve CSVs and log files
XY graphs with up to 64 characteristics possible, histograms
Generation and display of QR codes
Scheduler for calendar controlled functions
...

Kinco HMI are now in use at well over 100 of our customers in Germany.

We are convinced that Kinco's HMI touch panels also open up a particularly cost-effective way for you, as an automation or machine and plant manufacturer, to provide your customers with modern and versatile user interfaces.

The Kinco HMI is the perfect solution for you.

Electrical properties
Dielectric strength:	500 VAC 1 minute
Isolated power supply:	no
Nominal supply voltage:	24 V DC
Permissible voltage range:	12 - 28 V DC
Power consumption:	7.2 Watt
Display
Backlight:	LED
Brightness:	300 cd/m²
Contrast ratio:	500:1
Display colors:	16.7 million
Screen diagonal:	10 " / 25 cm
Screen resolution:	1024 * 600
Touchtype:	4-wire resistive
Viewing angle stability (left / right / top / bottom):	85° / 85 ° / 85° / 85°
Interfaces, protocols and connections
CANopen:	no CANopen
Communication driver for PLCs:	ABB AC500 (serial + Ethernet) , Allen Bradley (serial + Ethernet) , BACnet (serial + Ethernet) , Beckhoff Twincat ADS (Ethernet) , Codesys V2 (Ethernet) , Codesys V3 (Ethernet) , Emerson RX3i (Ethernet) , GE SNP (serial) , IDEC MicroSmart (Ethernet only) , IDEC MicroSmart (serial + Ethernet) , Kinco PLC (serial + Ethernet) , Mitsubishi FX (serial + Ethernet) , Mitsubishi Q (serial + Ethernet) , Modbus master and slave (serial + Ethernet) , Omron (serial + Ethernet) , Schneider (serial + Ethernet) , Siemens LOGO! (Ethernet) , Siemens S7-200 (serial + Ethernet) , Siemens S7-300/400 (serial + Ethernet) , Siemens S7-1200/1500 (Ethernet) , Unitronics (serial + Ethernet) , Xinje XC (serial) , Xinje XD (serial + Ethernet) , Xinje XD/XL (serial + Ethernet)
Ethercat:	no Ethercat
Ethernet:	1 x 10/100 (RJ45)
Fieldbuses & protocols:	Free serial communication (ASCII) , Modbus RTU Master , Modbus RTU slave , Modbus TCP Master (Client) , Modbus TCP slave (server) , Siemens MPI (as PPI for one participant only)
Free serial communication:	Yes (ASCII)
Interfaces:	Ethernet , RS-232 , RS-485 , USB host , USB slave
Isolated serial interface:	no
MQTT:	Publisher (Client) , Subscriber (Client)
Modbus:	Modbus RTU Master , Modbus RTU slave , Modbus TCP Client (Master) , Modbus TCP server (slave)
OPC UA:	OPC UA Client , OPC UA Server
Profibus DP:	No Profibus
RS-232 connection type:	DB9 Female
RS-485 connection type:	DB9 Female
SD card:	none
Serial connections:	COM0: RS-232/RS-485/RS-422 , COM2: RS-232
Support for camera input (CCTV):	USB camera
Time logs:	NTP client in the local network
USB host ports:	1 x USB host (for USB memory, keyboard, webcam, barcode reader, etc.)
USB slave connections:	1 x USB slave (program download only)
VPN:	Integrated VPN function for remote control and remote maintenance
WLAN:	not supported
Dimensions and environmental properties
Assembly:	Slide-in unit (e.g. switch cabinet door with clips from behind)

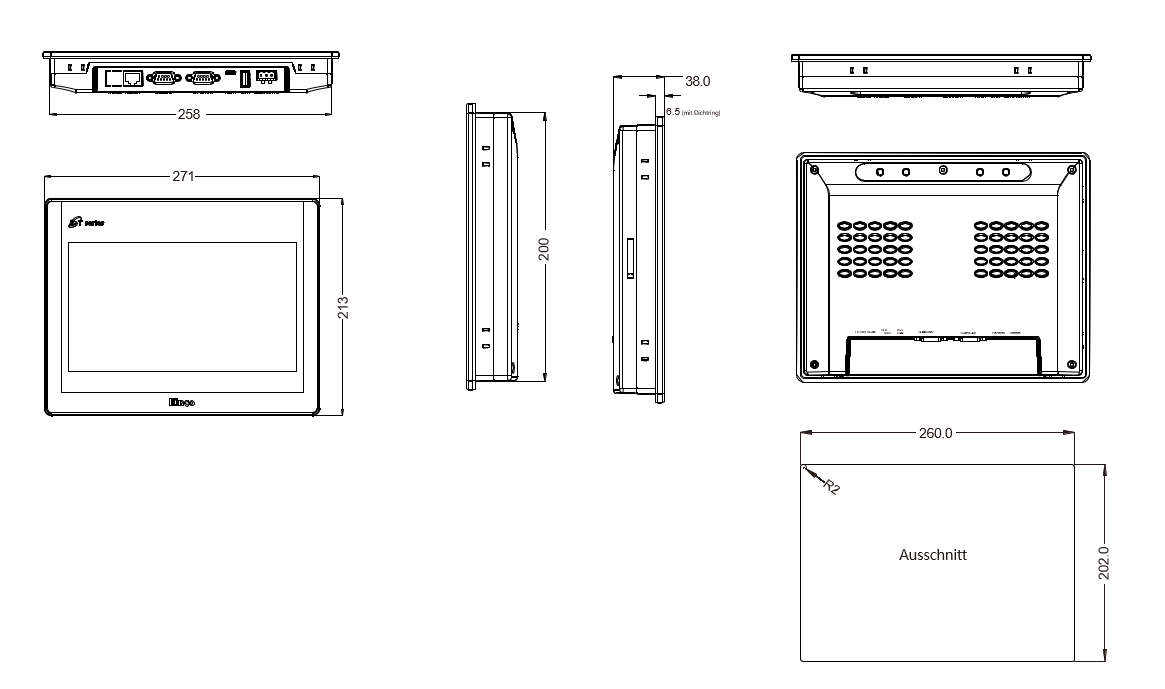

Assembly detail:	260 mm x 202 mm cut-out; mounted with mounting clips
Brightness:	300 cd/m²
Cooling:	Ambient air (passive)
Dimensions (width x height x depth):	271 mm x 213 mm x 38 mm
Housing material:	Technical plastic
Operating temperature range:	0 °C to +50 °C
Protection class:	IP65 (front)
Storage temperature range:	- 20 °C to + 60 °C
Weight:	1.2 kg
Other properties
Data logger:	Yes
Memory:	128 MB DDR3 RAM memory , 128 MB NAND flash memory
Model series:	IoT series
Processor:	ARM RISC 32 Bit 800 MHz
Real-time clock:	Yes (synchronization with network time possible)
Year of market launch:	2021
Programming
Language of the programming environment:	Arabic , Chinese , English , German , Korean , Russian , Turkish
Programming languages:	C (standard C) for macros , Graphical programming interface
Programming software:	Kinco DTools
Certifications
CE certificate:	Yes
Standards and certifications:	CE (EN61000-6-4:2007+A1:2011, EN61000-6-2:2005)

Manufacturer "Kinco"

Kinco ist einer der führenden Hersteller für Automatisierungstechnik in Asien. Am Hauptsitz in Shenzhen (China) an der Grenze zu Hongkong ist auch das Forschungs- und Entwicklungsteam des Unternehmens beheimatet, zusätzlich betreibt Kinco ein Forschungszentrum in Deutschland, eine Besonderheit unter chinesischen Unternehmen.

In Bezug auf Qualität und Funktionsumfang orientiert sich Kinco stark am europäischen und deutschen Markt. Kommunikationstreiber für Siemens S7-Steuerungen sind deshalb in jedem HMI enthalten. Das Unternehmen hat ein modernes und zuverlässiges Sortiment an HMI, Antriebstechnik und Steuerungen. Kinco erwirtschaftet bereits mehr als 10% seines Umsatzes international, Deutschland gehört zu den Wachstumsmärkten des Herstellers.
