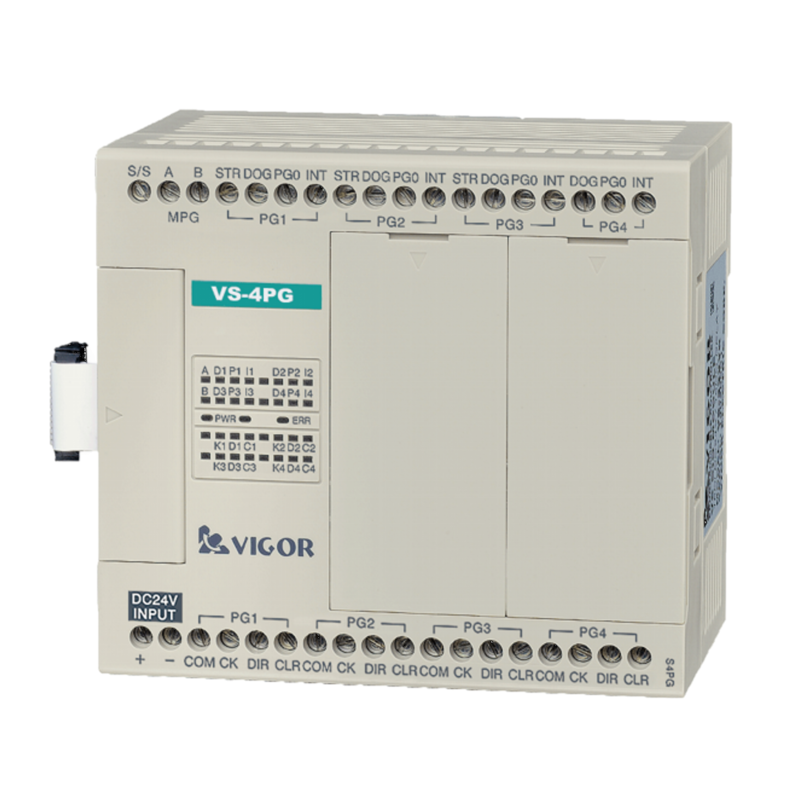

Vigor-VS Pulsausgangsmodul für Achssteuerung als Erweiterung

Available, delivery time: 3 bis 5 Tage

Input and output variants

2 pulse outputs

4 pulse outputs

Product number:

VIP.VS.4PG

Create PDF quotation

Create PDF quotation for this product Hint: You can add multiple products to the cart and create a quotation in the cart. For logged in users the link will generate a quotation with their address.

Product information "Vigor-VS Pulsausgangsmodul für Achssteuerung als Erweiterung"

Ausgangsmodul für Vigor VS SPS für die Achssteuerung für Positionieraufgaben

Electrical properties
Nominal supply voltage:	24 V DC
Permissible voltage range:	21 - 28 V DC
Power internal power supply Extension bus:	0 mA @ 12 V (consumption) , 140 mA @ 5 V (consumption)
Digital I/O
Pulse control for drives:	4 axles
Pulse outputs (designation and type):	4 x 200 kHz
Interfaces, protocols and connections
Terminal type:	Screw terminal
Dimensions and environmental properties
Assembly:	DIN rail , Screw mounting
Cooling:	Ambient air (passive)

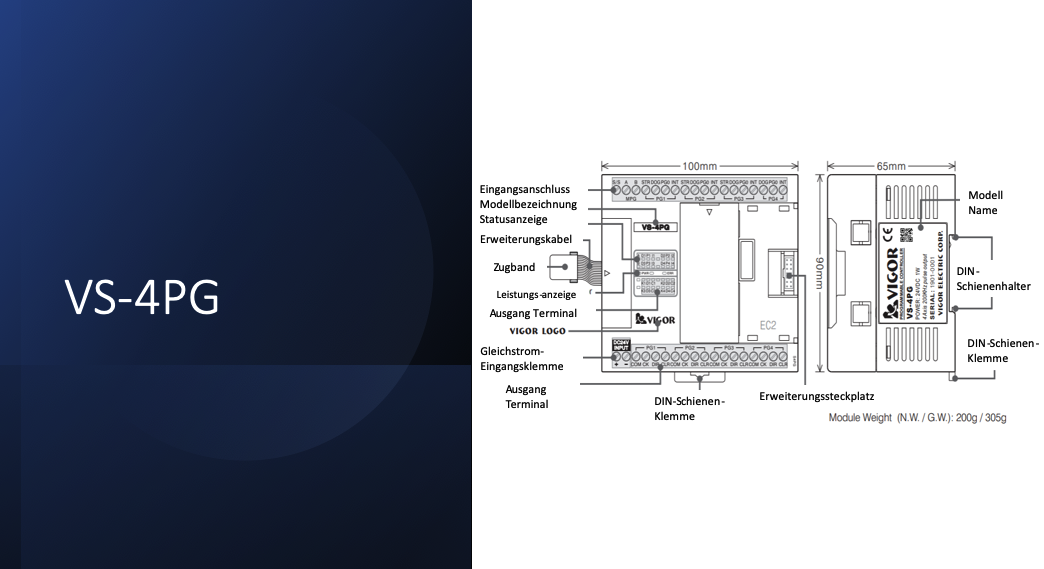

Dimensions (width x height x depth):	100 mm x 90 mm x 65 mm
Housing material:	Plastic
Operating temperature range:	0 °C to +55 °C
Storage temperature range:	- 20 °C to + 70 °C
Weight:	0.2 kg
Other properties
Model series:	VS
